Far Field 222 nm Can and Wall Units

Our new and exciting Far Field 222 nm Can and Wall units are the future of decontamination. Continuous decontamination that is safe for people to be in the presence of.

The FF 222nm Can and Wall units have been specifically designed for any indoor   environment where people gather.

The Far Field 222nm technology market continues to evolve, and UVC Cleaning Systems Inc. is on the forefront of innovative designs. The 222 nm wavelength products can now be employed that apply continuous UV decontamination energy while allowing people to operate normally within the environment. Our two unique models provide distinctive patent pending features that no other product on the market can match. Together, our product offerings are unchallenged, providing 360 degree coverage of continuous Far Field UVC in your facilities.

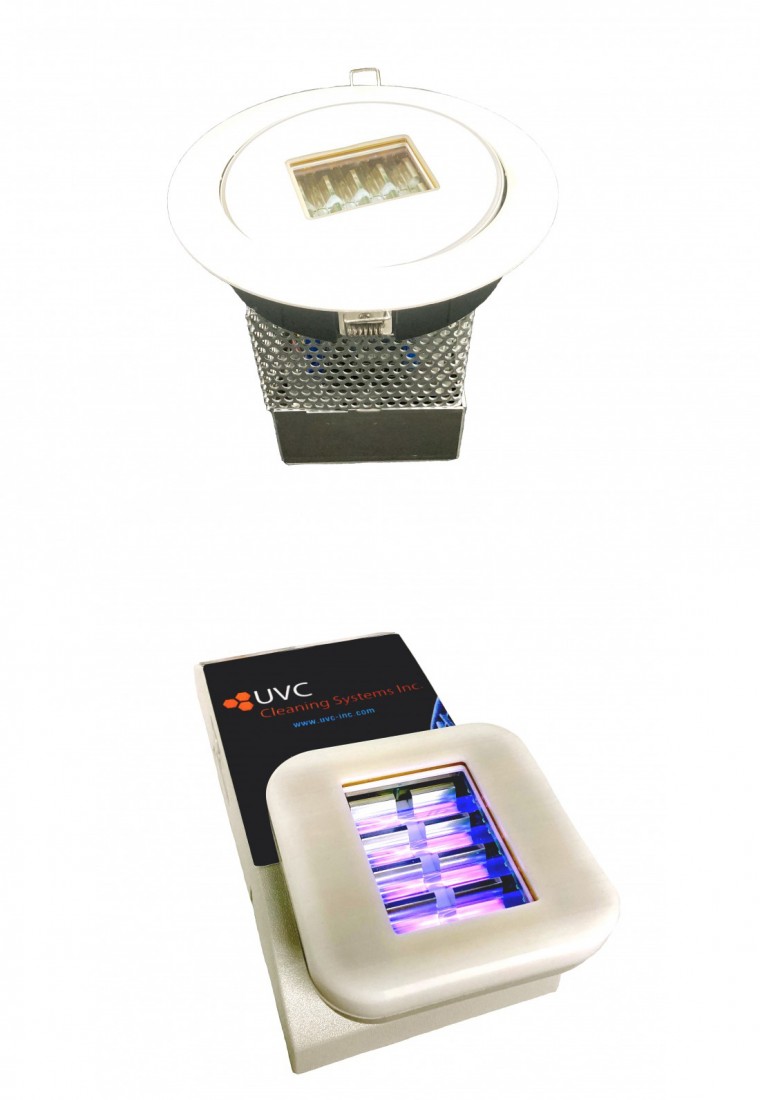

The Far Field Ceiling Can is extremely flexible and easy to mount into a wallboard, within a troffer, or any application up to 1/2" thick. Our custom removable lens uses no replacement hardware and changing lamps is simple. A patent pending feature with our unique system makes- it so that it can radially pivot our lights to focus them into areas that customers prefer a high level of coverage.

Our Far Field 222nm Wall Mount is the perfect solution to fit into your vertical surfaces. It is highly flexible and with the same patent pending design employed in out ceiling products, where you can pivot the lights to focus them on a specific area. With a wide 60 degrees irradiation pattern, it is highly effective in decontaminating a large area.

Why use Filtered 222nm Far-UVC Light in Occupied Spaces?



Does Not Affect Eyes

The proteins on the top layers of the cornea of our eyes absorb 222nm far-UVC. The 222nm wavelength does not penetrate these tissues to depths associated with cataracts, photokeratitis, and other eye conditions.









Does Not Affect Skin

In addition to not affecting the eyes, 222nm far-UVC also does not negatively affect the skin, when used following safety guidelines. Filtered 222nm does not affect living skin cells because it does not penetrate beyond dead skin cells of the stratum corneum.





Importance of a Filter

The filtered 222nm technology utilizes an excimer lamp that employs a specially designed short pass filter to remove harmful UV wavelengths, resulting in a narrow band of UV centered at 222nm.









Dosing

 The level of reduction of pathogens will depend upon the dose delivered, measured in mj/cm2, which is a measure of radiant energy per unit area. At 222nm, relatively small doses over time are needed to inactivate bacteria and viruses to reduce the pathogenic bioburden on the surface that is in contact with the UV light.





UVC, UV disinfection, Mobile disinfection, decontamination

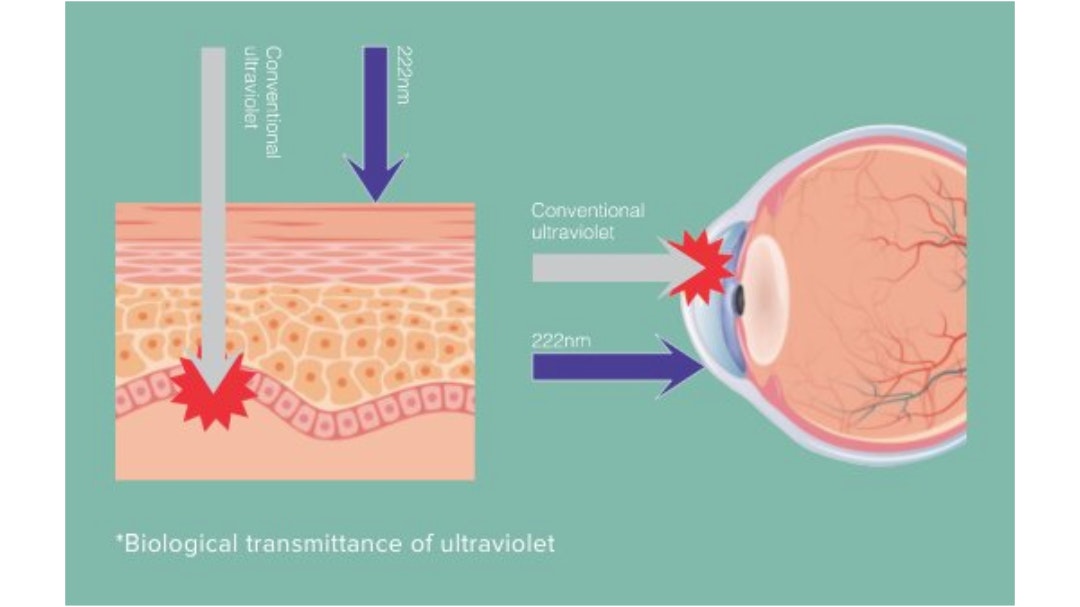

What 222 means and why it's important







Care 222 Filter vs no filter comparison image





Care 222 Spectrum Distribution Chart


Can Unit  Specifications:


  • Height: 7"
  • Depth: 5"
  • Width: 5"
  • Weight: 2 lbs
  • Electrical: 90-305 VAC @ .5 A 60 Hz





Wall Unit  Specifications:

  • Height: 12"
  • Depth: 3.25"
  • Width: 4.5"
  • Weight: 2 lbs
  • Electrical: 120 VAC @ .5 A, 50 Hz
  • 240 VAC @ .5 A, 50 Hz
